NEW QUESTION 30

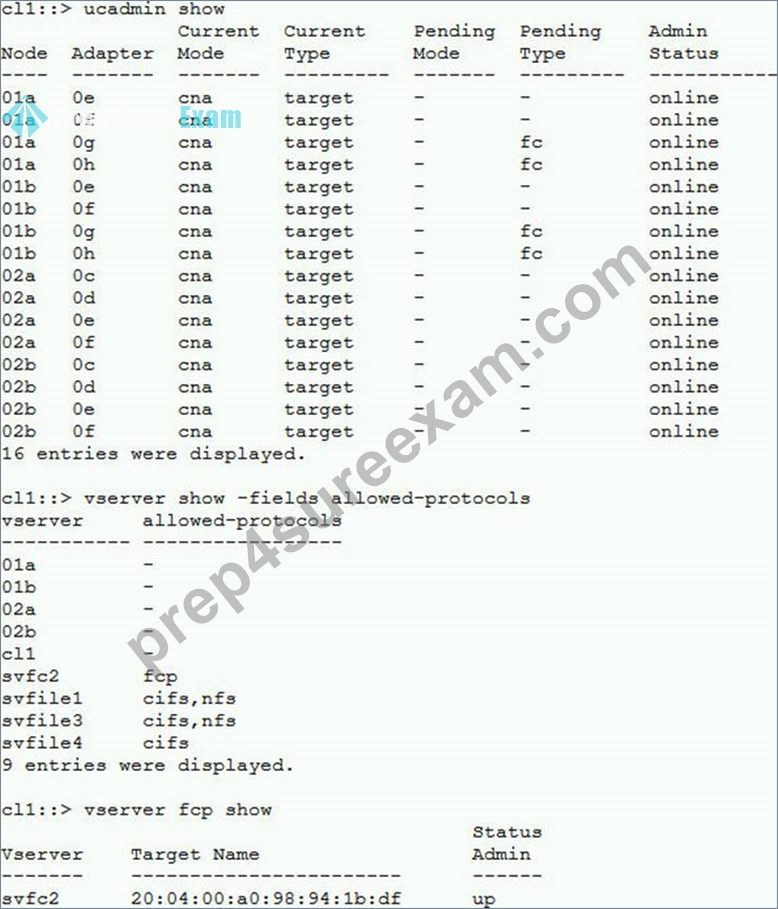

Click the Exhibit button.
An administrator has added two nodes to an existing cluster. The administrator created the svfc2 SVM to use FC to present LUNs to hosts. The hosts are unable to see the LUNs that have been presented to them.
Referring to the exhibit, what is the problem?
- A. The FC protocol needs to be added to the allowed protocols list.
- B. The FC ports show the status of admin down.
- C. The UTA mode change Is pending a reboot.
- D. The FC service on the SVM has been stopped.
Answer: C
NEW QUESTION 31
You have a new 2-node AFF All SAN Array A700 cluster serving iSCSI LUNs. You are asked to test failures of the storage back-end subsystem.
In this scenario, which two actions satisfy the failure criteria? (Choose two.)
- A. Pull an Ethernet cable from a Linux host.
- B. Disable Snapshot policies.
- C. Perform a storage controller failover.
- D. Pull an Ethernet cable from a storage port with a cluster LIF.
Answer: C,D
NEW QUESTION 32
You are asked to increase the size of your existing 4-node FAS8060 cluster running ONTAP 9.7 software with four additional AFF A700 nodes.
Which tool enables you to confirm that this will be a valid addition?
- A. Active IQ
- B. Hardware Universe (HWU)
- C. Active IQ Config Advisor
- D. Active IQ OneCollect
Answer: B
NEW QUESTION 33
You are adding a new AFF A220 FIA pair to an existing FlexPod infrastructure that is using a pair of Nexus 9332PX switches. Due to rack space constraints, the AFF A220 is to be installed in an adjoining rack, and the distance from the back of the AFF A220 to the Nexus 9332PX switches is nine meters.
In this scenario, which 10Gbe cabling solution would you use to connect the AFF A220 to the Nexus 9332PX switches?
- A. mini SAS
- B. active Twinax
- C. passive Twinax
- D. LC/LC OM4 optical
Answer: B
NEW QUESTION 34
You are in the testing phase of a newly deployed NVMe over Fibre Channel (NVMe/FC) SAM environment using Asynchronous Namespace Access (ANA). You are unable to successfully fail over a workload.
In this scenario, which action should you perform?
- A. Verify that multi-initiator zoning is configured on the FC switches.
- B. Verify that the host operating system version supports ANA.
- C. Verify that the NVMe/FC host utilities kit is installed for ANA.
- D. Verify that the DM-Multipath driver is configured for ANA.
Answer: D
NEW QUESTION 35

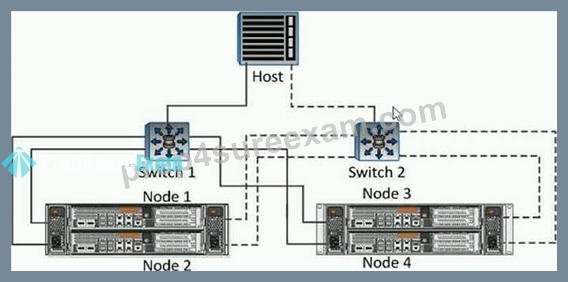

Click the Exhibit button.
Referring to the dual-fabric cabling diagram shown in the exhibit, which scenario explains why the customer's iSCSI host experienced a SAN outage with a LUN on Node 2?
- A. iSCSI LIFs were configured on all nodes, the SLM reporting nodes list included all nodes, and Node 1 and Node 2 went down.
- B. iSCSI LIFs were configured on all nodes, the SLM reporting nodes list included Node 1 and Node 2, and Node 1 went down.
- C. iSCSI LIFs were configured on Node 2 only, the SLM reporting nodes list included Node 1 and Node 2, and the cable connecting the host to Switch 1 went bad.
- D. iSCSI LIFs were configured on Node 1 and Node 2 only, the SLM reporting nodes list included Node 1 and Node 2, and Switch 1 went down.
Answer: A
NEW QUESTION 36
You have a 2-node AFF A220 switchless cluster serving iSCSI LUNs. NetApp Volume Encryption (NVE) is enabled on all data volumes. You are asked to consolidate identical boot LUNs that are on both controllers. You need to nondisruptively consolidate LUNs with the highest storage efficiency.
In this scenario, which NetApp ONTAP technology accomplishes this task?
- A. aggregate relocate
- B. LUN move
- C. LIF migrate
- D. volume move
Answer: D
NEW QUESTION 37
You have a 4-node AFF A400 cluster serving iSCSI and FC LUNs. You are asked to tier Snapshot copy data from the SSDs to both Azure Blob storage and Amazon S3. The two sets of Snapshot copies must be managed by ONTAP software so that they are accessible for cloning and replication.
In this scenario, which NetApp technology accomplishes this task?
- A. Fabric Pool
- B. MetroCluster
- C. Flash Pool
- D. Cloud Sync
Answer: A
NEW QUESTION 38

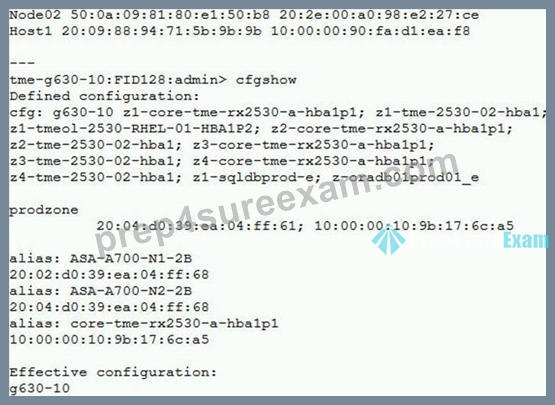

Click the Exhibit button.
You issue the cfgshow command on one of your Brocade switches and notice that there is no zoning listed under the Effective configuration. When you attempt to use the fcping command from the initiator to the target, the command fails.
Referring to the exhibit, what are two problems? (Choose two.)
- A. There is no zone defined that has both the initiator and target in a common zone.
- B. There is no zoning configured, and the default zone's access is set to No Access.
- C. The default zone access is set to allow even though zoning is defined.
- D. There is no alias for either the initiator or the target.
Answer: A,B
NEW QUESTION 39

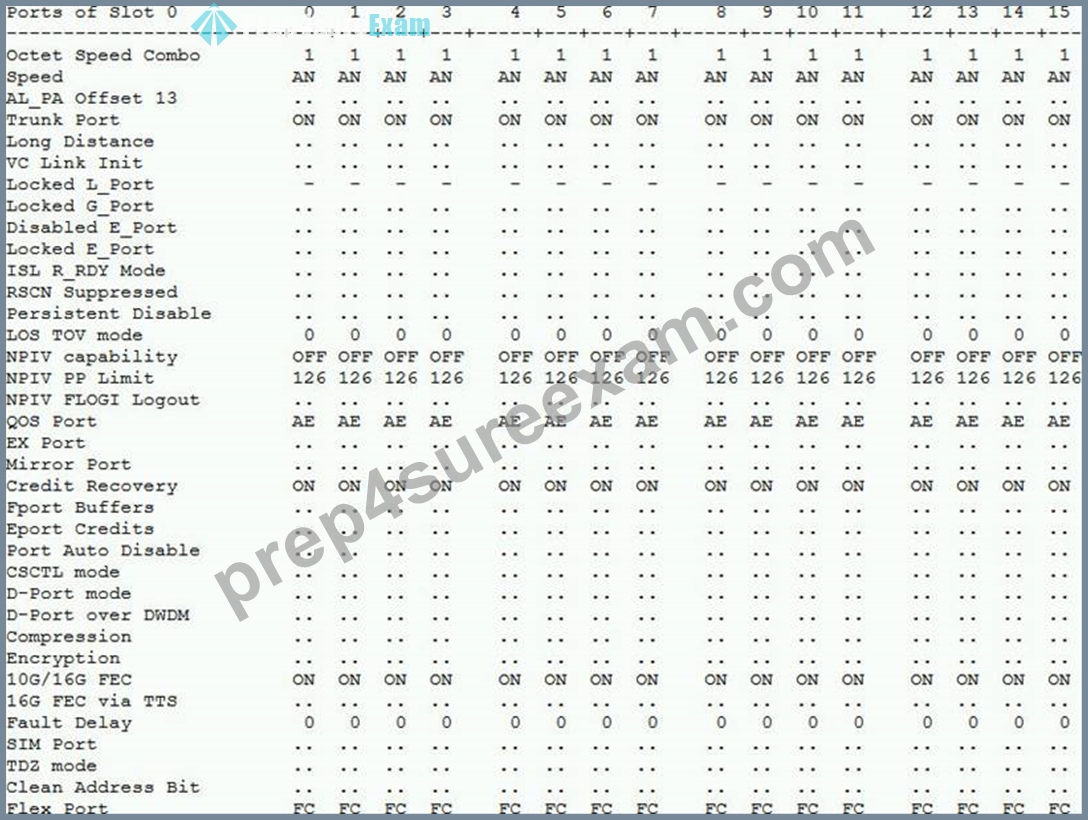

Click the Exhibit button.
An administrator enabled the FC protocol on an SVM and created a LUN for a Windows Server 2019 server. After a rescan, the LUN is not visible on the host.
Referring to the exhibit, which two steps must the administrator take to solve this problem? (Choose two.)
- A. Create an igroup, add the iSCSI IQN, and then map the igroup to the LUN.
- B. Create an igroup, add the WWPN of the host initiator, and then map the igroup to the LUN.
- C. Disable NPIV on the switch.
- D. Enable NPIV on the switch.
Answer: B,D
NEW QUESTION 40

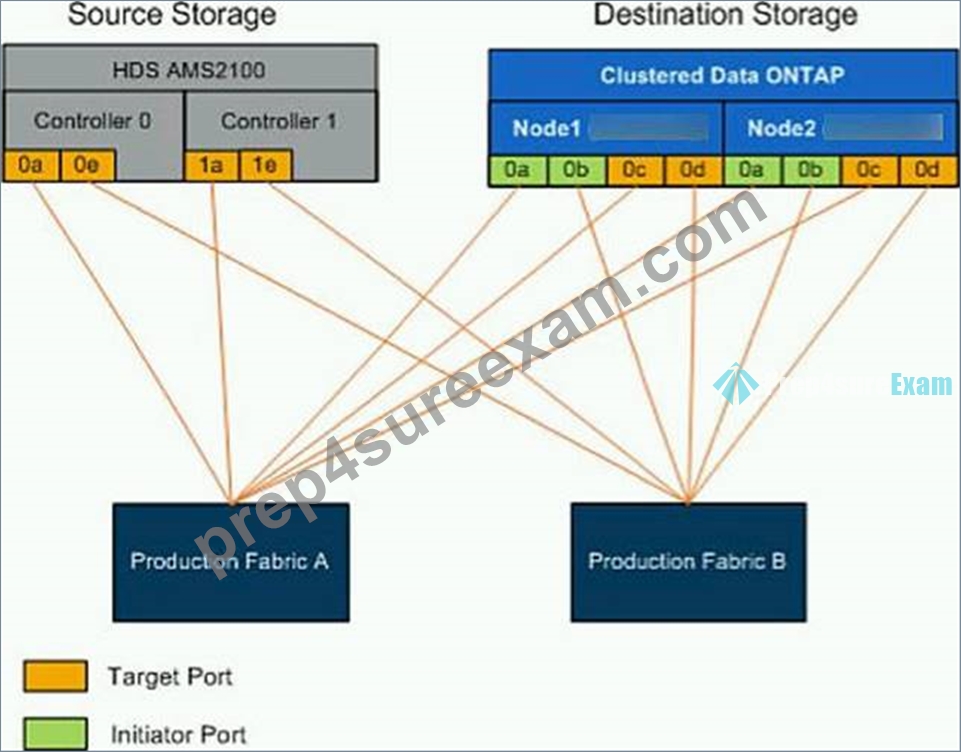

Click the Exhibit button.
You have an existing legacy Fibre Channel SAN environment and have deployed an ONTAP AFF A800 cluster. You are planning to migrate a NetApp Foreign LUN Import using the existing SAN environment.
Referring to the exhibit, how must the UTA2 ports be configured?
- A. Configure the CNA to target mode.
- B. Configure the CNA to initiator mode.
- C. Configure the FCP to initiator mode.
- D. Configure the FCP to target mode.
Answer: C
NEW QUESTION 41
An administrator enabled the iSCSI protocol on an SVM and created a LUN for a VMware ESXi server.
After the administrator performs a rescan, the LUN is not visible on the host.
Which statement describes how to solve this problem?
- A. Perform a takeover/giveback of the controller that is hosting the LUN.
- B. Enable ALUA support on the VMware host.
- C. Create an igroup, add the WWPN of the host initiator, then map the LUN to the igroup.
- D. Create an igroup, add the iSCSI IQN, then map the LUN to the igroup.
Answer: D
NEW QUESTION 42

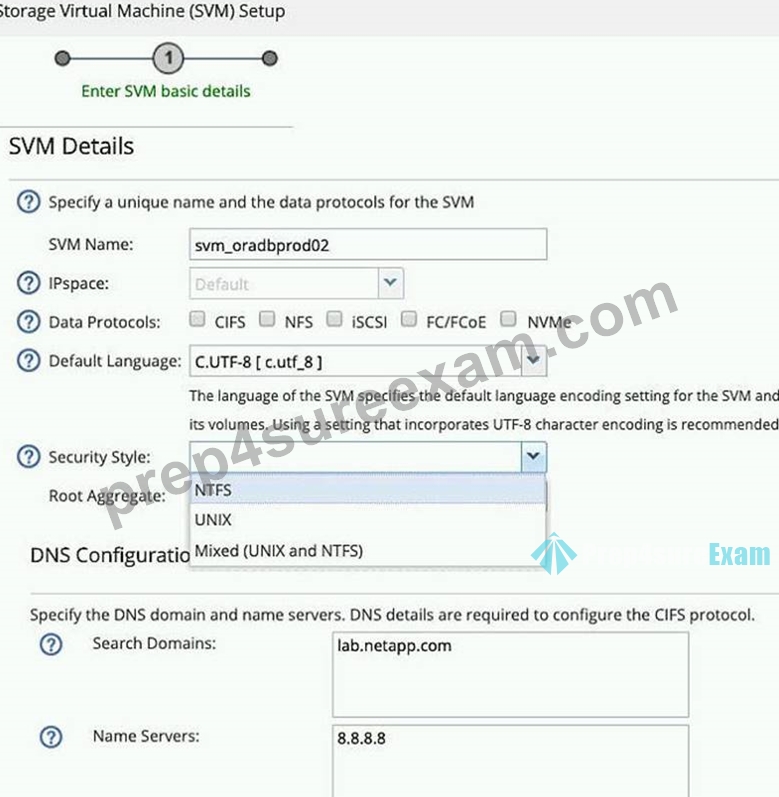

Click the Exhibit button.
Referring to the exhibit, which two configuration elements are required to configure an SVM to support NVMe on Red Hat Enterprise Linux? (Choose two.)
- A. In Data Protocols, choose both FC/FCoE and NVMe protocols.
- B. In Data Protocols, choose only the NVMe protocol.
- C. Set the security style to Mixed (UNIX and NTFS).
- D. Set the security style to UNIX.
Answer: A,D
NEW QUESTION 43
An administrator is asked to provide enhanced security measures to an iSCSI LUN using the Challenge Handshake Authentication Protocol (CHAP) with the iscsi security create command.
In this scenario, for which two objects should the administrator configure CHAP? (Choose two.)
- A. for the target IQN or EUI
- B. for the iSCSI LUN
- C. for the initiator IQN or EUI
- D. for the volume containing the iSCSI LUN
Answer: B,C
NEW QUESTION 44
You have an SVM serving LUNs to your VMware environment. You have configured the SAN LIFs, zoning, and multipath by using industry best practices. You need to temporarily migrate a SAN LIF to another host, preserving the SAN LIF's WWPN. You do not want to lose access to the LUNs during LIF migration.
In this scenario, what are three required steps that are needed to accomplish this task? (Choose three.)
- A. Set the new home node and home port in the LIF.
- B. Update the zone using the WWPN of the destination host's physical port.
- C. Bring the LIF online.
- D. Take the LIF offline.
- E. Nondisruptively migrate the LIF to the destination host.
Answer: A,C,D
NEW QUESTION 45
You just finished installing and configuring a new NetApp AFF All SAN Array environment.
In this scenario, which two tools would you use to verify that the environment satisfies best practices? (Choose two.)
- A. Active IQ Unified Manager
- B. Active IQ Config Advisor
- C. ONTAP System Manager
- D. Active IQ OneCollect
Answer: A,B
NEW QUESTION 46
An additional LUN is required to be created and attached to an existing VMware ESXi environment. You are asked by a VMware administrator what NetApp software would validate multi-path connections to a newly presented FC LUN.
In this scenario, which NetApp software is required?
- A. You must install Active IQ OneCollect.
- B. You must install Active IQ Config Advisor.
- C. You must install the NetApp VSC.
- D. You must Install the DSM onto the virtual machine.
Answer: D
NEW QUESTION 47
An administrator is designing storage requirements for a new low-priority application. The administrator wants to restrict I/O to only two LIFs to reduce the effect that the new application might have on existing workloads.
In this scenario, which two techniques would be used to restrict I/O? (Choose two.)
- A. configuring port sets for the igroup
- B. using SendTargets to discover the LUN
- C. managing zoning on the switch
- D. enabling load balancing on the host
Answer: A,C
NEW QUESTION 48
You must ensure that a cluster that uses FabricPool has high availability,
What is required to accomplish this task?
- A. an IPspace that is dedicated to the FabricPool
- B. a cloud bucket
- C. four cluster LIFs
- D. a local failover policy for intercluster LIFs
Answer: D
NEW QUESTION 49
An administrator is testing a newly deployed SAN configuration and wants to simulate a node failure by administratively taking all FC physical ports down on a node that is serving data.
In this scenario, what should the administrator observe?
- A. Host multipath drivers use any indirect path on the cluster to serve data.
- B. ALUA path states change to use the direct paths of the HA partner to serve data.
- C. ANA path states change to use the direct paths of the HA partner to serve data.
- D. Host multipath drivers use the HA partner's direct paths to serve data.
Answer: A
NEW QUESTION 50

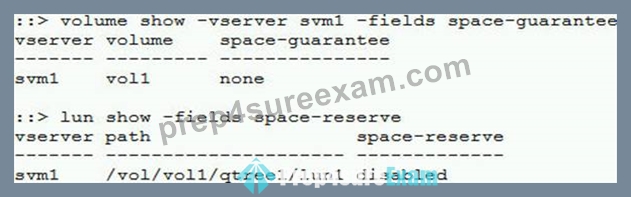

Click the Exhibit button.
Referring to the exhibit, which container obtains space savings from deduplication, compression, and compaction?
- A. the aggregate
- B. the qtree
- C. the LUN
- D. the volume
Answer: A
NEW QUESTION 51

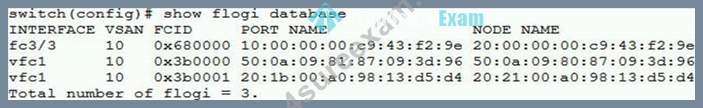

Click the Exhibit button.
Referring to the exhibit, which WWPN would you add to a zone set to provide access to a LUN hosted in ONTAP?
- A. 20:lb:00:a0:98:13:d5:d4
- B. 50:0a:09:81:87:09:3d:96
- C. 20:00:00:00:c9:43:f2:9e
- D. 10:00:00:00:c9:43:f2:9e
Answer: D
NEW QUESTION 52
An administrator wants to connect a DS460C disk shelf to a FAS9000.
Which two statements are correct in this scenario? (Choose two.)
- A. A C19/C20 power cable and compatible rack power distribution unit are required.
- B. A C13/C14 power cable and compatible rack power distribution unit are required.
- C. A deep rack is required
- D. A Telco rack is required
Answer: B,C
